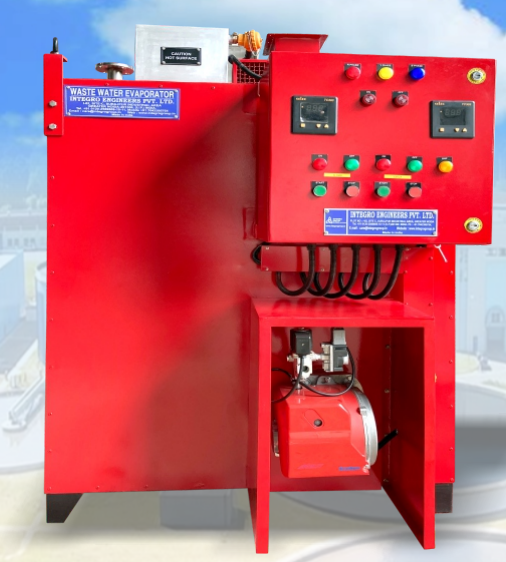

Waste Water Evaporator

At TruTherma, we manufacture high-performance wastewater evaporators designed for maximum efficiency, durability, and cost savings. Learn about the key features of our industrial evaporation systems.

1. Sizes to Fit Your Needs (Capacity)

• Standard Models: Available in 20, 45, 90, 170, 300, and 500 LPH (Liters Per Hour).
• Daily Capacity: Our standard effluent evaporator can clean up to 10 KLD (Kilo Liters per Day) of water.
• Custom Designs: If your factory produces more than 10 KLD of waste, Trutherma will custom-build a larger industrial evaporator machine just for you.

2. Rust-Proof & Long-Lasting Body

• Stainless Steel Body: Built with high-grade 316 SS (Stainless Steel) alloy for a long life.
• Corrosion Resistance: For harsh chemical water, we use special anti-corrosion alloys so the machine never rusts and works reliably for years.

3. Low Fuel Cost & Fast Water Recovery

• High Efficiency: Trutherma systems are designed for fast evaporation and quick water recovery.

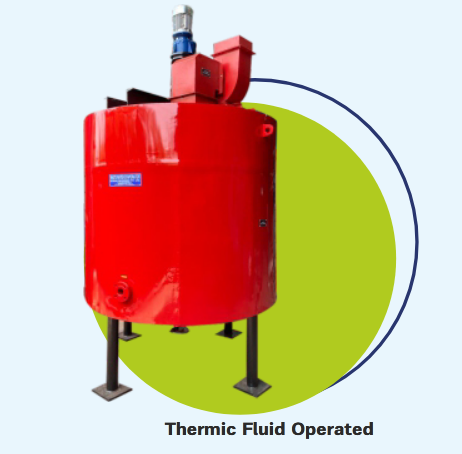

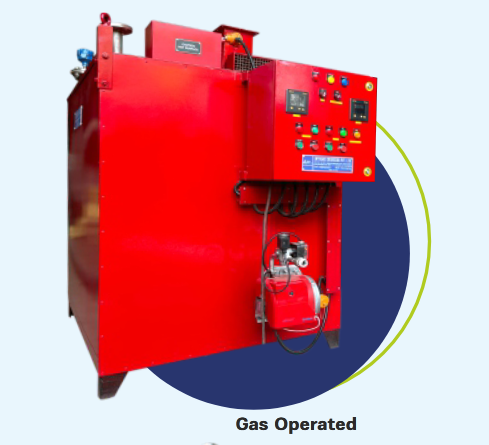

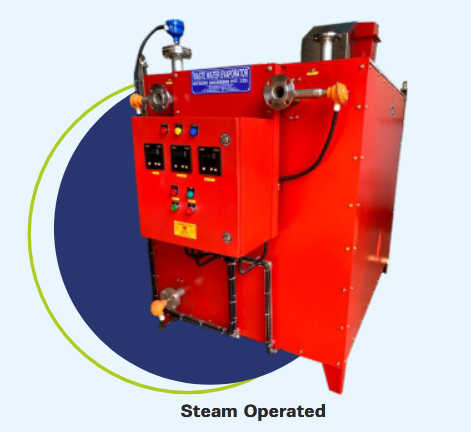

• Multiple Heat Sources: You can run our energy-efficient evaporator using Electricity, Gas, or Steam—whichever is the cheapest fuel for you.
• Save Energy: Our top-quality burners use very little fuel, which directly cuts down your monthly running costs.

4. 100% Safe to Use (Automation Controls)

• No Heater Burnout: Smart automated safety controls stop the machine from running dry, protecting the heaters from damage.
• Double Safety Switch: A 2-stage level switch automatically shuts off the heat if water levels drop, ensuring fail-safe operation.
• Heat Insulation: Excellent thermal insulation prevents heat loss and keeps the outside machine body safe for workers to touch.

5. Easy Cleaning & Sludge Management

• No Choking: The heaters are placed high inside the tank so that thick dirt and solid waste do not block or damage them.
• Sloped Bottom: The bottom of the tank is slanted (sloped) for quick and easy sludge removal.

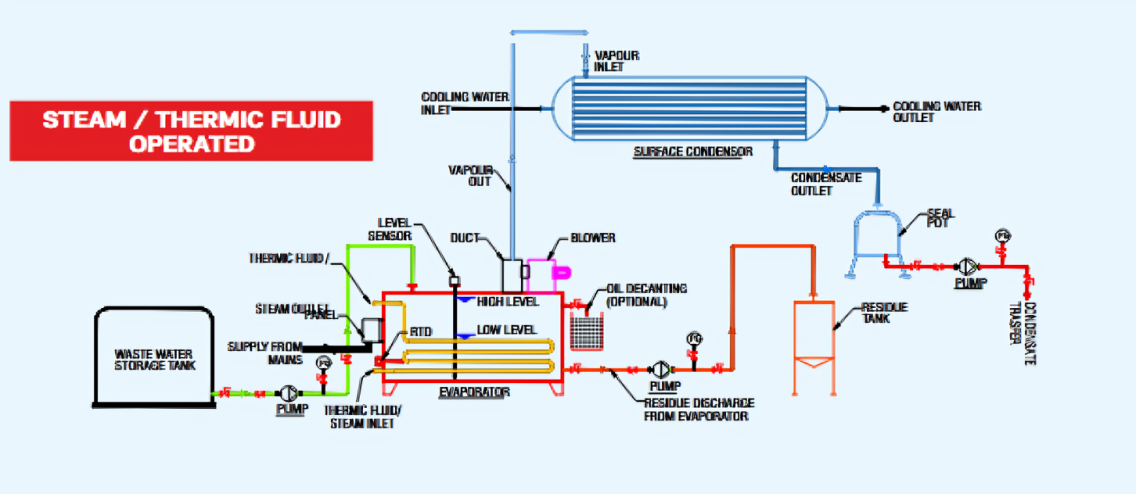

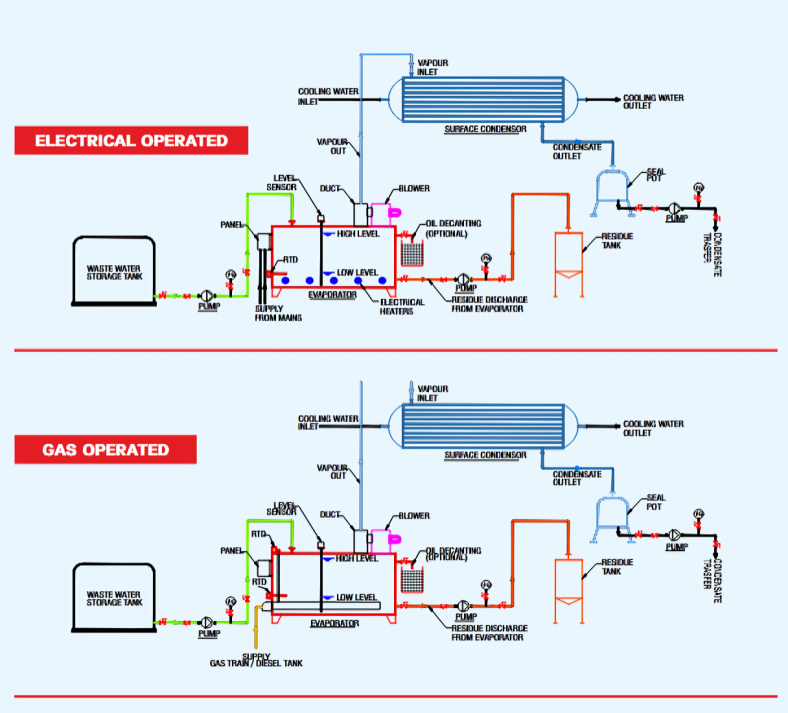

As one of the top wastewater evaporator manufacturers in India, Trutherma builds machines that are simple to run. Here is how the Trutherma system works:

1. Filling the Tank

• Fill the Trutherma evaporator tank with dirty water from your main storage.
• Keep the water level high enough to cover the safety float switch. Do not overfill.
• Use a defoamer chemical if too much foam or bubbles form.

2. Oil Separation

• If the water has oil, let it rise to the top and drain it out using the oil decanting pipe.
• For mixed oil, Trutherma uses an automatic chain skimmer to clear it out easily.

3. Heating & Evaporation

• Turn on the Trutherma machine.
• The exhaust blower starts automatically after 55-60 minutes of heating to clear out the vapor quickly.

4. Sludge & Waste Cleaning

• After the process, open the drain valve to remove the thick muddy waste (slurry).
• Move it to the Trutherma residue tank where special heaters dry it completely into a sludge cake for easy disposal.

Condensate Recovery (How Trutherma Saves You Money)

Every Trutherma industrial evaporator machine comes with a high-efficiency surface condenser that turns steam back into clean, hot water.

Why it lowers your running cost:

• Saves 10% to 20% Fuel: The recovered water from the Trutherma system is already hot. Feeding this hot water back to your boiler means it will use much less fuel.
• Saves Fresh Water: You can reuse this water again and again, reducing your plant’s carbon footprint.

Where to reuse this water?

• As hot feedwater for your factory boiler.
• For pre-heating other factory systems.
• For washing equipment and cleaning the plant.

Wastewater Evaporation Systems by Trutherma Engineers

Efficient waste management is important for eco-friendly business. Trutherma Engineers and Consultants LLP  provides advanced wastewater evaporation systems that help industries manage waste, follow environmental laws, and reuse water.

High-Tech Industrial Wastewater Evaporators

As a top wastewater evaporator company, we use advanced thermal evaporator technology to treat industrial effluents.

• How it works: The system heats wastewater to separate clean water from dirt.
• The Result: High water recovery for factory reuse and less waste volume.
• Bonus: Low power bills and easy fit with Zero Liquid Discharge (ZLD) plants.

Key Uses

Our heavy-duty systems easily handle complex waste in these industries:

• Textiles & Chemicals
• Pharmaceuticals
• Food & Beverage
• Zero Liquid Discharge systems

Top Wastewater Evaporator Manufacturers in India

Trutherma Engineers is one of the most trusted manufacturers in India. We build custom systems for your specific factory needs and provide full setup and maintenance support.

FAQs

1. How do Trutherma Engineers’ wastewater evaporators work?
Our systems boil wastewater. The water turns into clean steam to reuse, leaving solid waste behind for easy disposal.

2. Why is Trutherma’s industrial wastewater evaporator needed for ZLD?
In a Zero Liquid Discharge (ZLD) plant, our industrial wastewater evaporator recycles the very last drop of water so zero liquid waste leaves the factory.

3. Which industries use Trutherma’s evaporation systems?
Chemical, textile, and pharma factories use our systems to treat their heavy liquid waste safely.

4. Why choose Trutherma among other manufacturers in India?
Trutherma Engineers offers energy-saving designs, custom setups, and great support, making us a leading wastewater evaporator manufacturer in India.
